Led Pixel Grid Screen; Black Color; RGB Full Color; Outdoor

TWO WEEKS  FREE DELIVERY

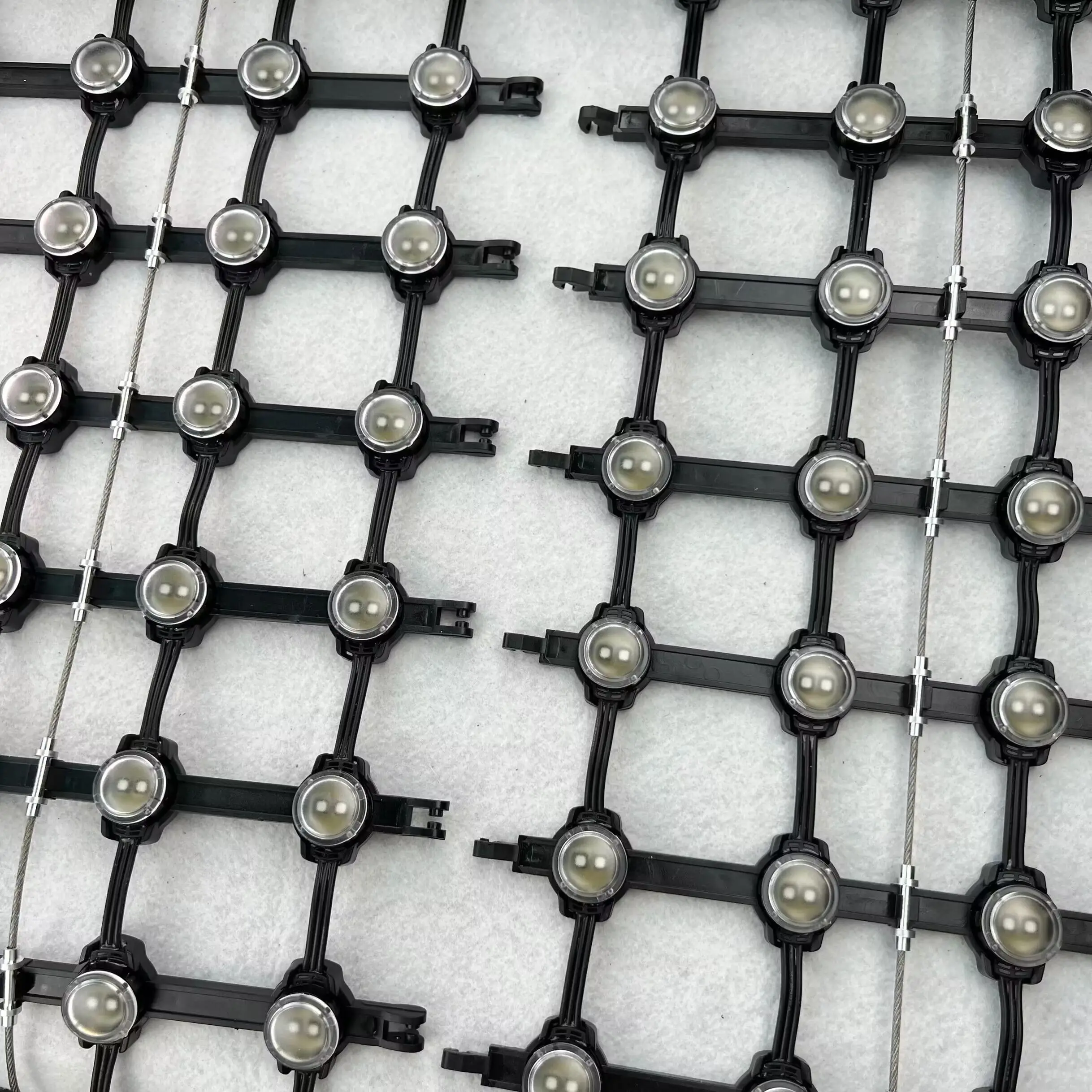

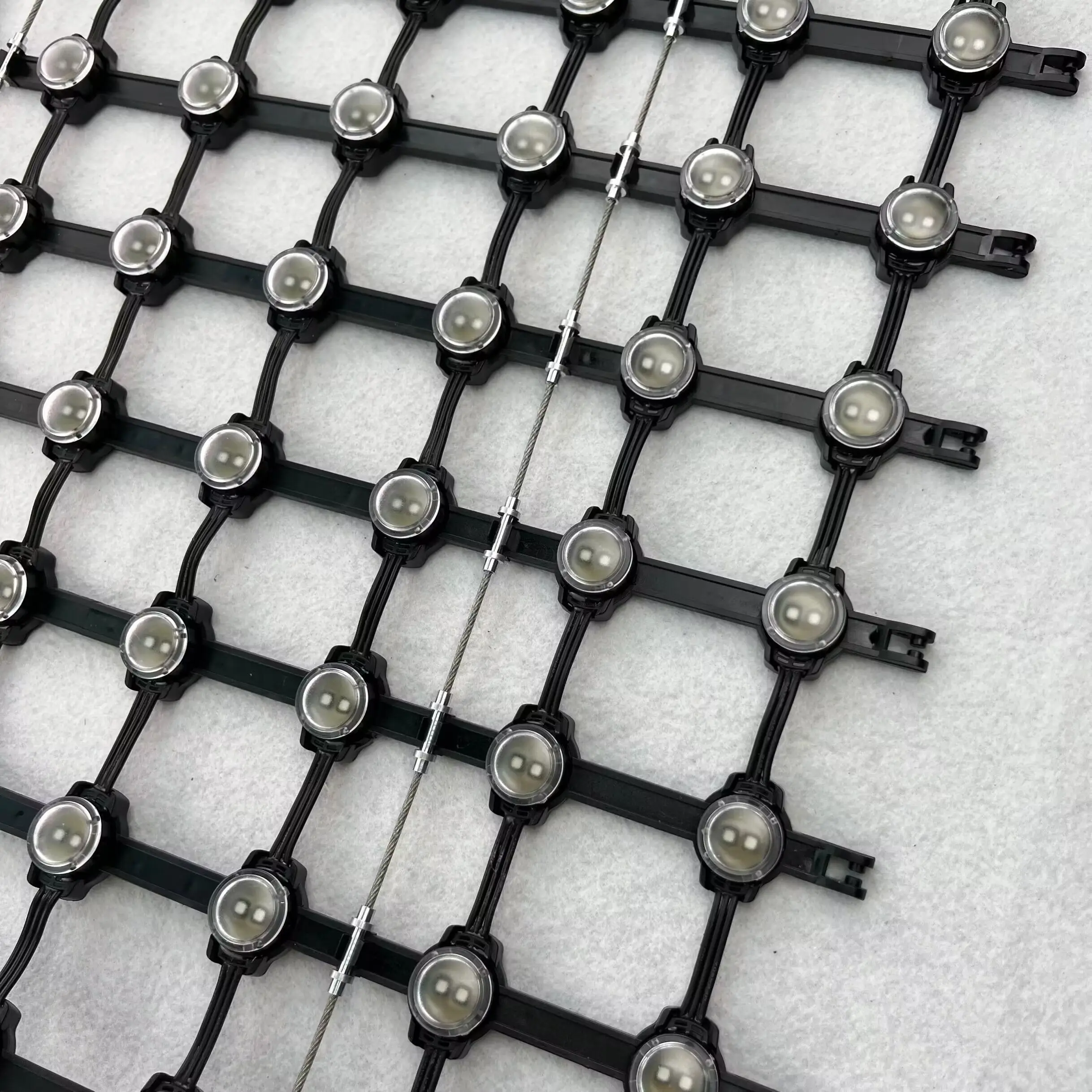

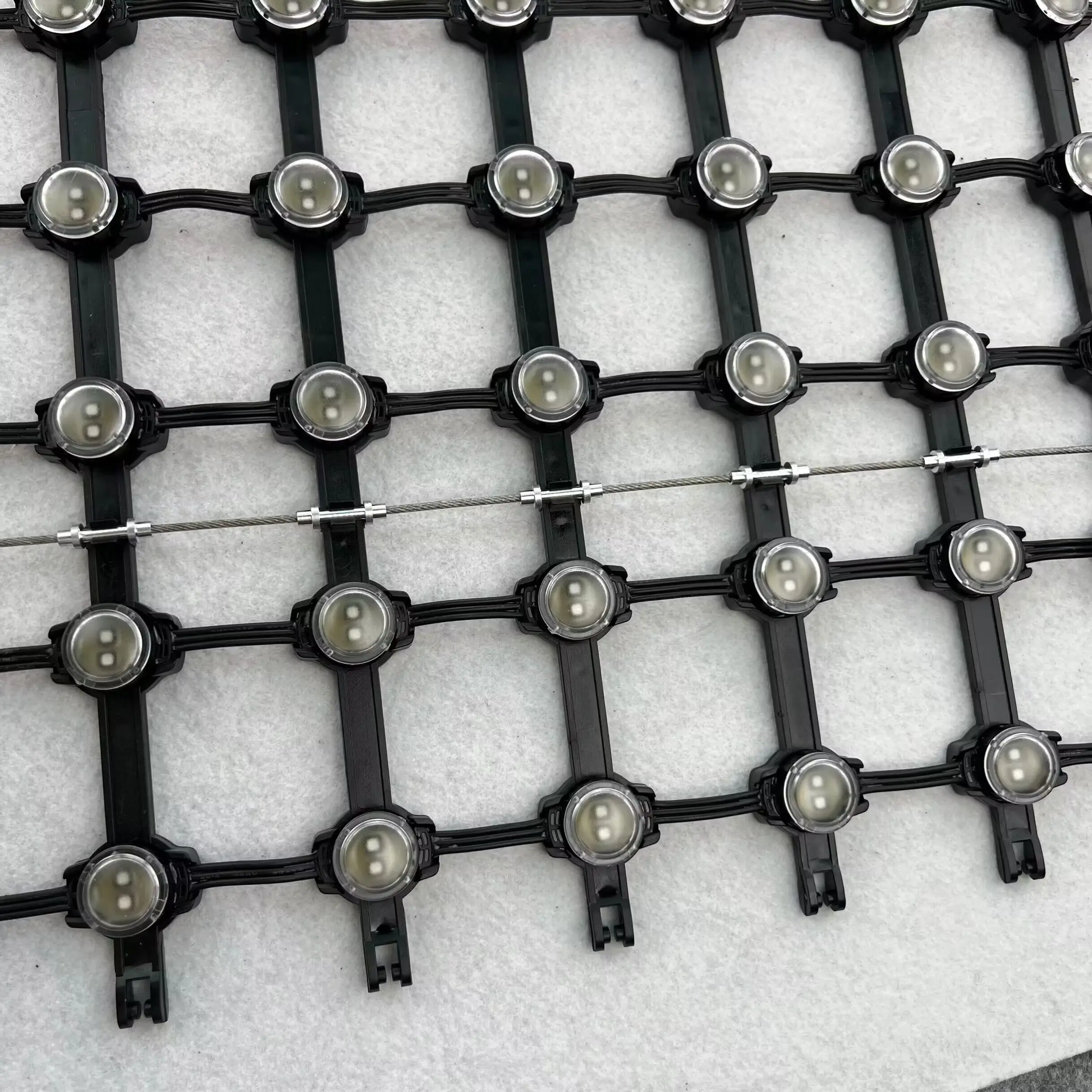

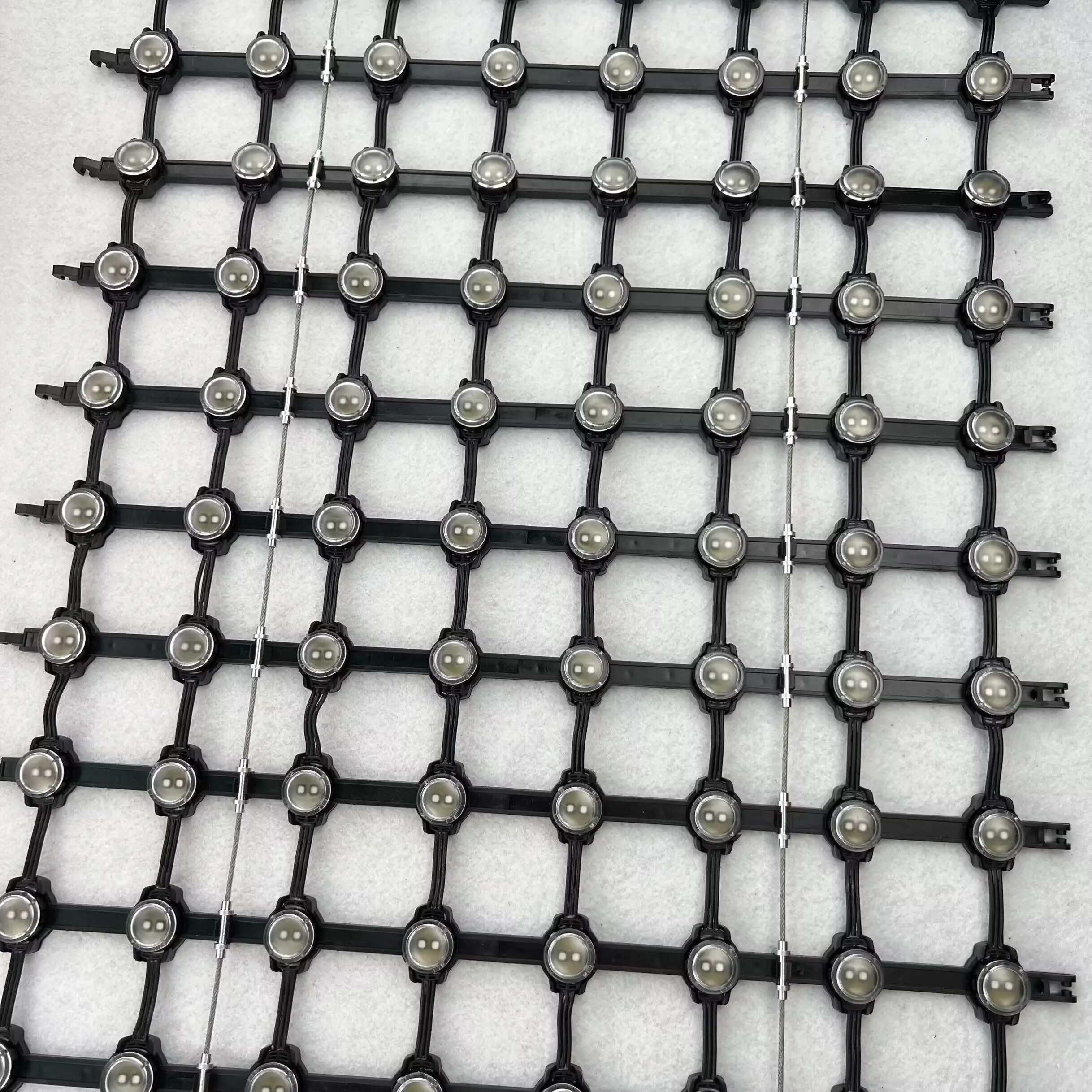

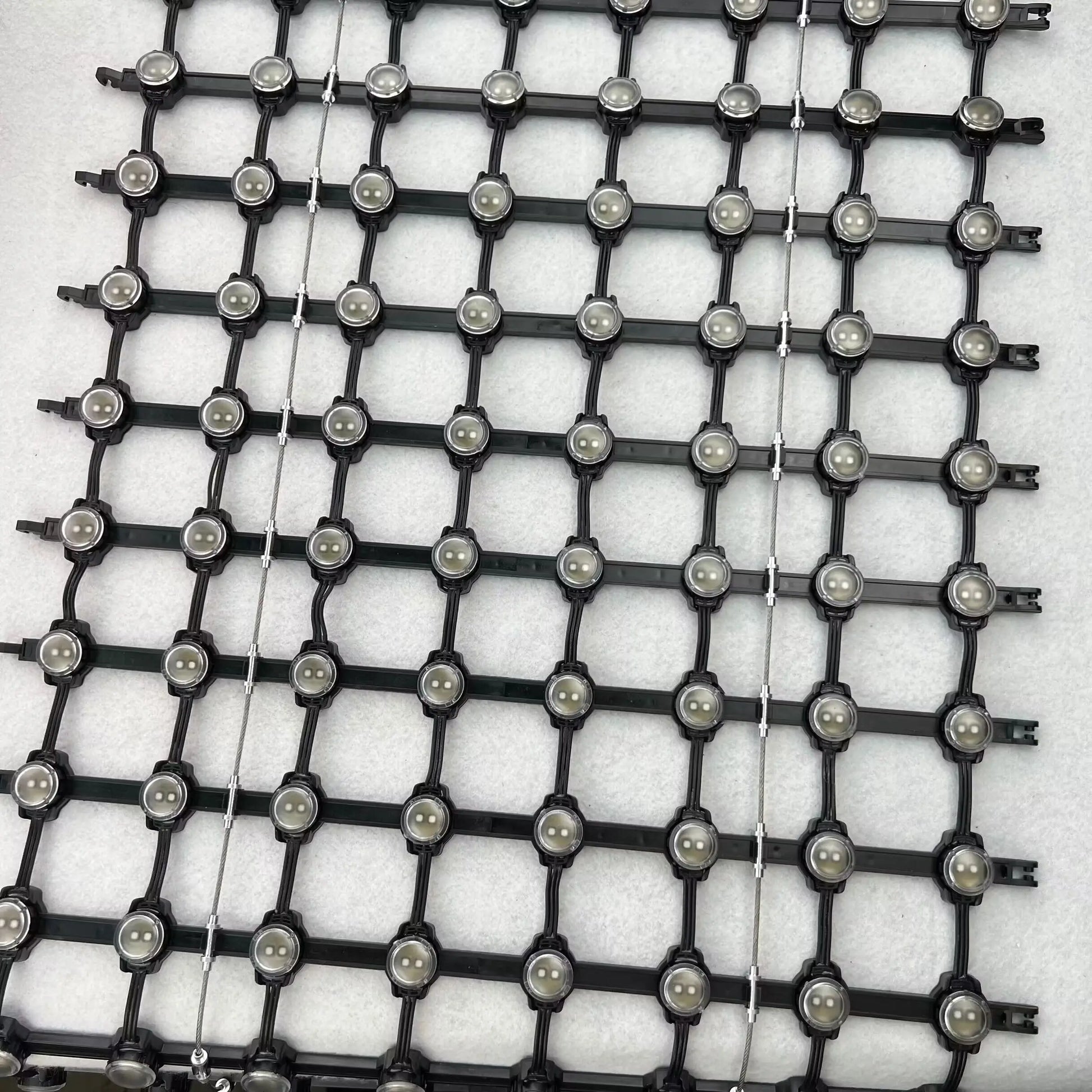

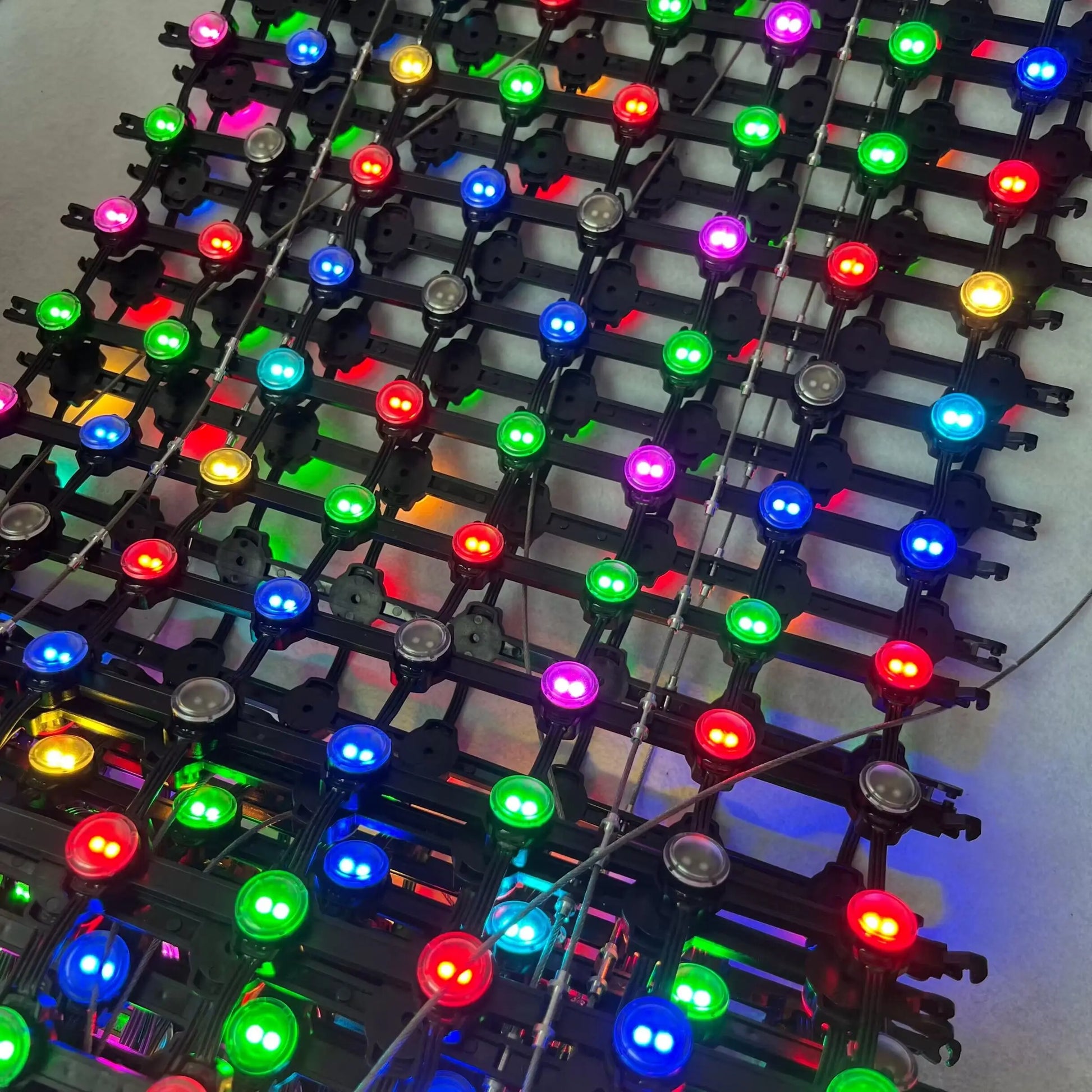

The Led Pixel Grid Screen is a high-quality display solution designed for vibrant visual presentations. Featuring a sleek black color, this screen utilizes RGB full color technology to deliver stunning imagery and effects.

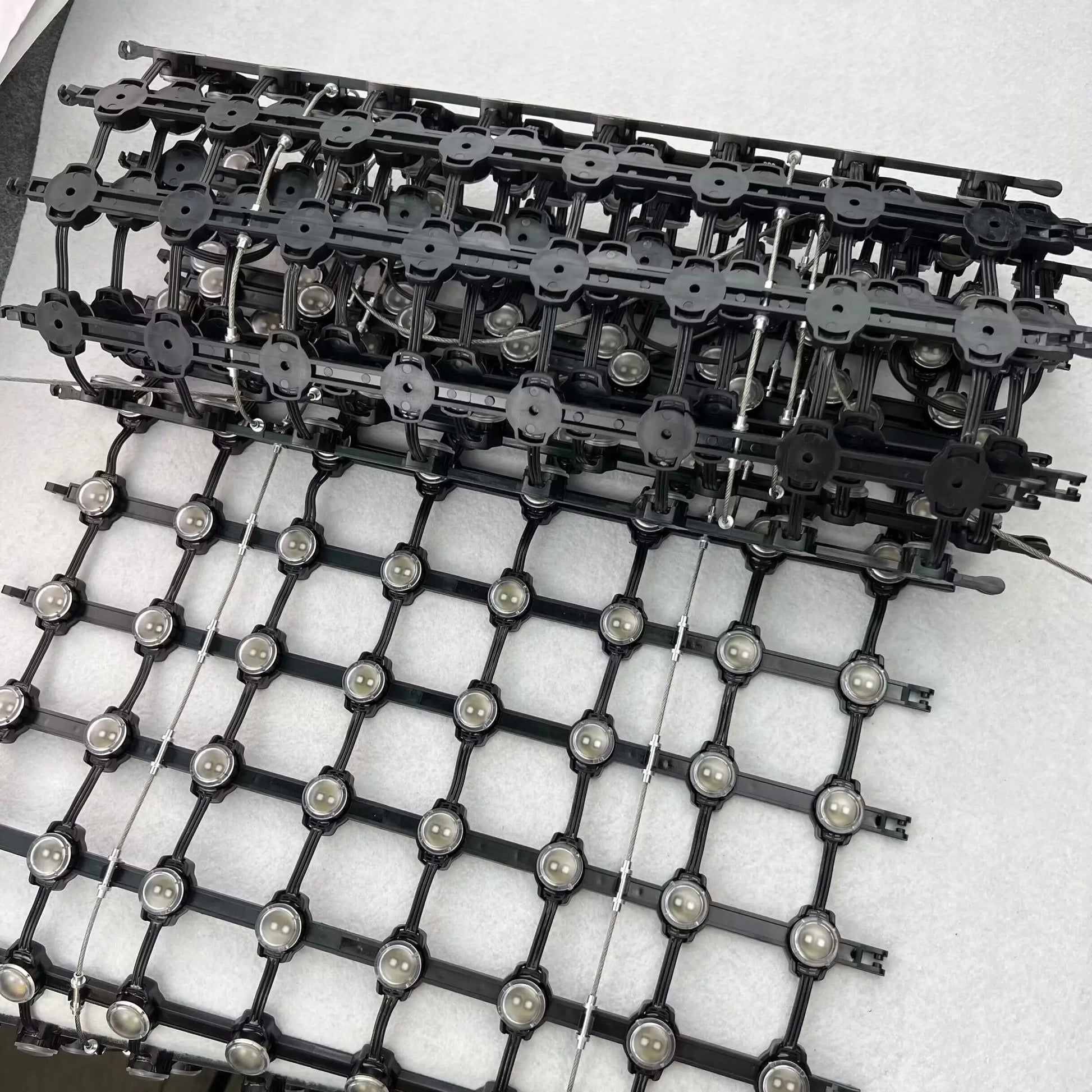

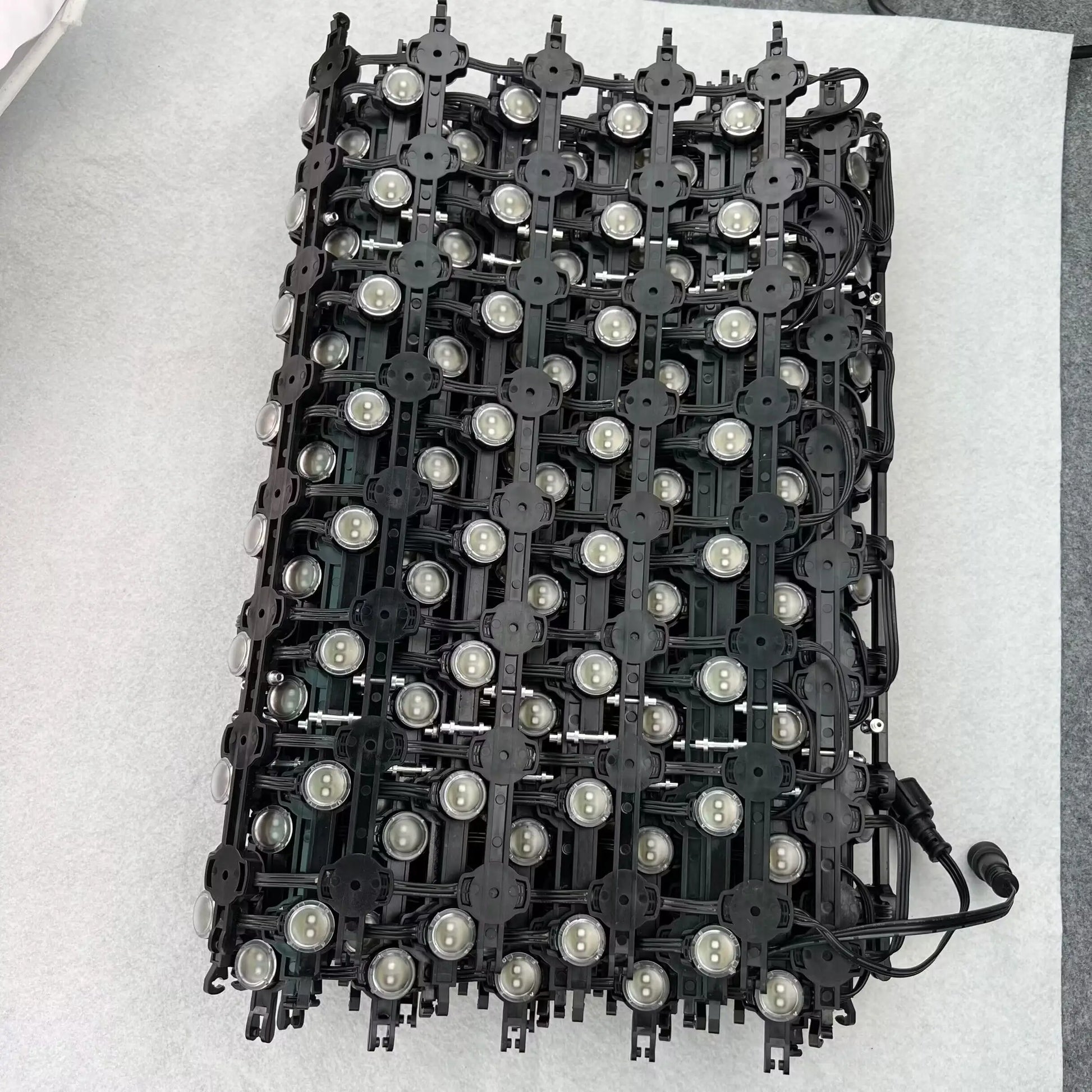

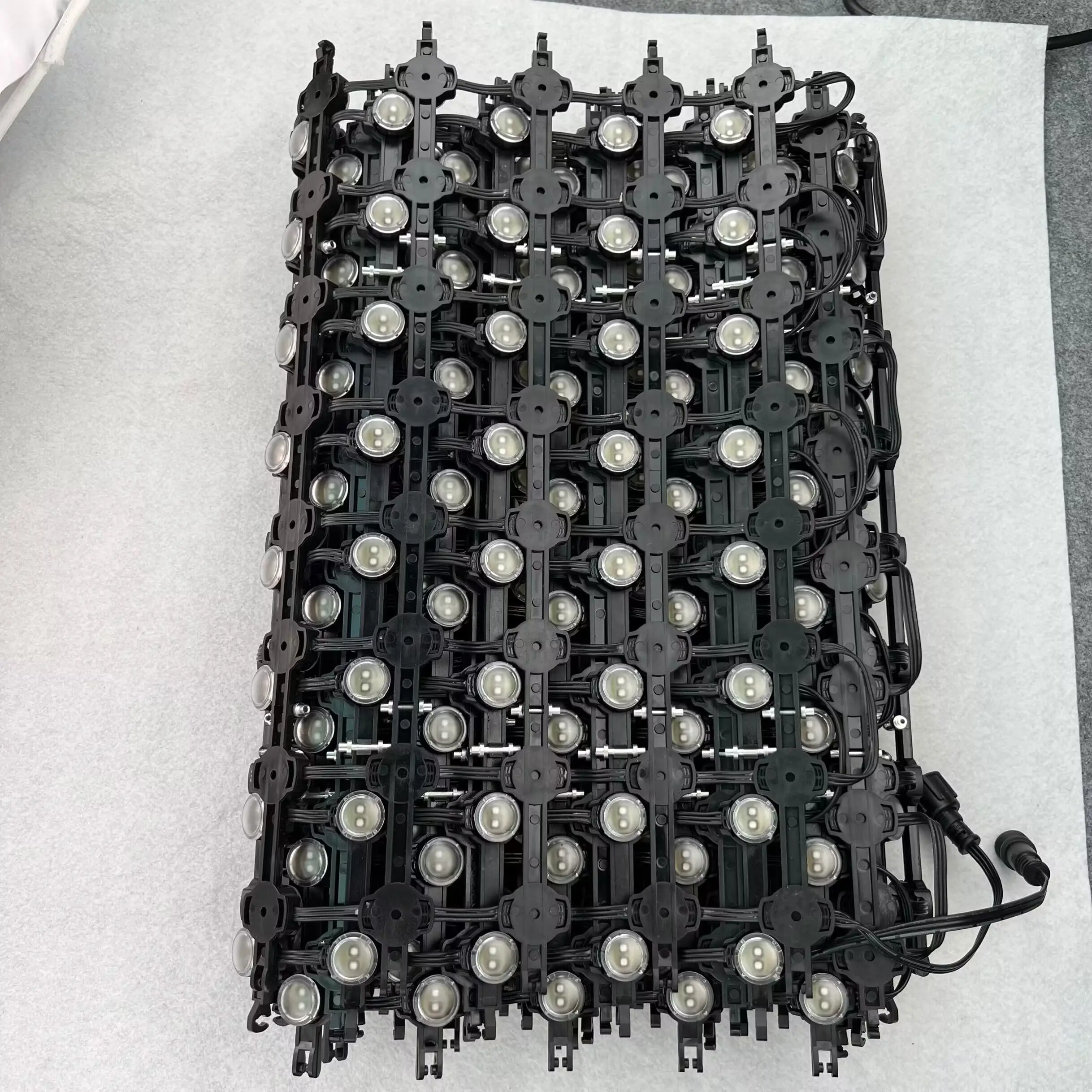

Modular design, multiple modules are spliced together to form a whole without complex installation structure. The size can be customized according to the project. It is suitable for variety of installation methods, such as bending, folding, rolling, hanging, etc.

With a pitch of 62.5mm and a power source of DC12V, it operates efficiently while providing a luminous flux of less than 60. The screen is constructed with durable materials, ensuring an IP68 waterproof rating, making it suitable for various environments.

Each pixel consists of two LEDs, allowing for dynamic and customizable lighting effects. The installation method is assembly-based, and it is certified by CE, FCC, RoHS, and UL, ensuring safety and reliability.

Panel size:                    8pixels * 8 pixel=50cm*50cm;

                                     8pixels * 16 pixel=50cm*100cm;

                                     8pixels * 24 pixel=50cm*150cm;

                                     8pixels * 32 pixel=50cm*200cm

Product power:             0.48W per pixel(2 LEDs)

input voltage :               DC12V

Emitting color:              addressable RGB full color

light source/IC:             WS2811 IC 3535 SMD RGB LED

Control protocol:          WS2811 IC

LED pitch:                     62.5mm

wire color:                     3pin all black wire

case/holder color:         black

LED pixels:                     each led module (2 LEDs) as one pixel

lighting beam angle:     120 degree

IP rating:                           IP68 rated, water poof by epoxy resin filled

Your LED panel expects DMX512 signals, so you need a DMX controller that can convert video into DMX data.

Wiring Diagram

Key Connections:

1. DMX Signal Flow

   • PC → USB → DMX Controller (e.g., ENTTEC Pro) → DMX Cable → LED Panel.

   • If chaining panels: Panel 1 DMX OUT → Panel 2 DMX IN.

2. Power Wiring

   • 12V 30A PSU → +V/GND to LED panel’s power input.

   • Controller power: If your DMX controller needs 12V (e.g., DMXKing), connect it to the same PSU.

3. Grounding

   • Tie DMX ground (pin 1 of XLR) to PSU ground to avoid noise.

Step-by-Step Wiring

1. Power Supplies

   • Connect 12V+ and GND from PSU to the LED panel’s power terminals.

   • Use 12AWG wires for main power; 18AWG for short runs.

2. DMX512 Cable

   • Pinout (3-pin XLR):

     • Pin 1: Ground (GND)

     • Pin 2: Data– (DMX–)

     • Pin 3: Data+ (DMX+)

   • Connect controller’s DMX OUT to panel’s DMX IN.

3. Termination (For long runs)

   • Add a 120Ω resistor between DMX+ and DMX– at the last panel’s DMX OUT.

Visual Diagram

+---------------------+       +---------------------+
|                     |       |                     |
|    12V 30A PSU      |=======|   LED Panel (8x40)  |
|                     |  +V   |                     |
+----------+----------+  GND  +----------+----------+
           |                              |
           |                              |
           |       +------------+         |
           |=======| DMX Controller |=====|
                   +------------+
                         ↑
                       USB
                         ↓
                   +------------+
                   |    PC      |
                   +------------+

Critical Notes

• Power Injection: If brightness drops, inject 12V power at multiple points.

• DMX Addressing: Set panel’s start address to DMX 1 (default) unless chaining.

• Flickering Fix: Use DMX terminators and shielded cables for clean signals.

Best Controller Options:

2. Video Processing Software

Since DMX is not natively designed for video, you need software that can convert video into DMX pixel data.

Best Software:
