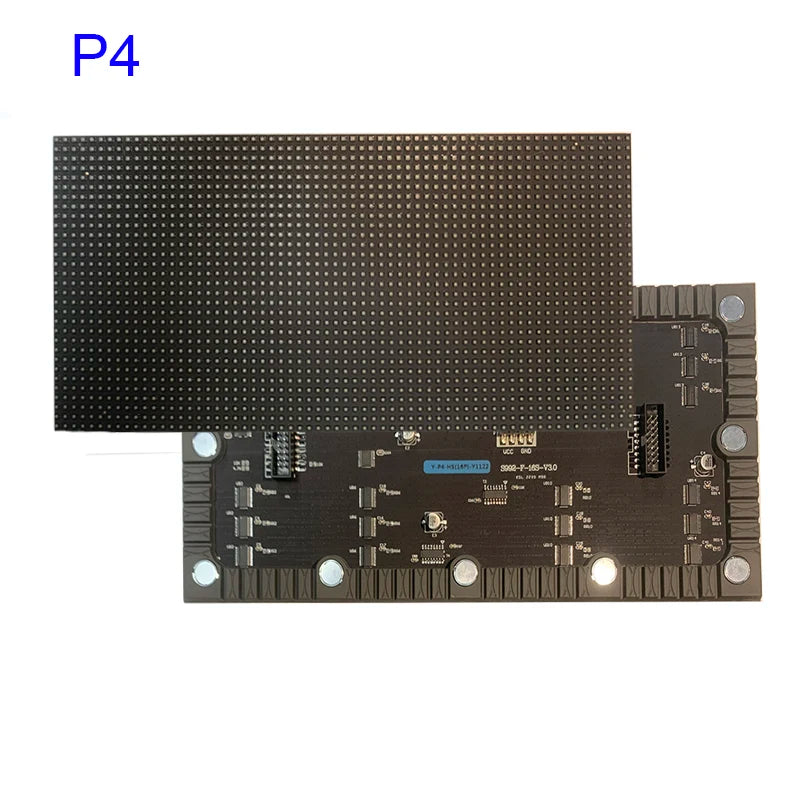

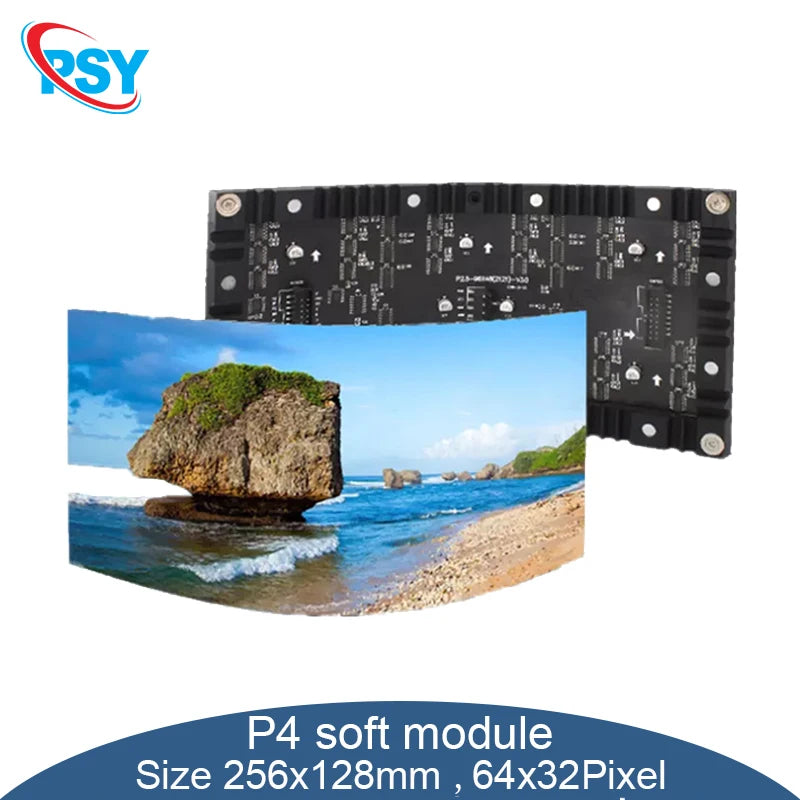

PixelRing P4 | 256x128mm Flexible Round LED Module
PixelRing P4 | 256x128mm Flexible Round LED Module
Regular price
$28.85 USD
Regular price
$33.97 USD
Sale price
$28.85 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATION
Brightness: 800CD/square meter
Display Function: VIDEO
Features: Matrix LED module
High-concerned Chemical: None
LED type: SMD2121
Life span: 100 thousand hours
Model Number: P4 full color soft module
Module size: 256x128mm
Origin: Mainland China
Pixels: 4mm
Refresh rate: 1920HZ
Resolution: 64x32 DOTS
Scan mode: 1/16scan
Specification: Video wall
Tube Chip Color: Full Color
Tube chip color: RGB full color
Use: Indoor
Voltage: 5v
|
Unit Module
|
Item
|
Parameter
|
|
Model Number
|
P4
|
|
|
Module size
|
256x128mm
|
|
|
Pixel pitch
|
4mm
|
|
|
Pixels Density
|
62500/㎡
|
|
|
Pixel configuration
|
1R1G1B
|
|
|
Package mode
|
SMD 3IN1 -2121
|
|
|
Pixel resolution
|
64dots(W)*32 dots(H)
|
|
|
Max Power
|
5A
|
|
|
Weight
|
0.35kg
|
|
|
Drive type
|
Constant drive
|
|
|
Scan mode
|
1/16scan
|
|
|
Port type
|
HUB75E
|
|
|
Brightness of white balance
|
≥800cd/m2
|
|
|
Working voltage
|
DC 5V
|
|
|
Average Power consumption
|
<300W/㎡
|
|
|
Max.Power consumption
|
<800W/㎡
|
|
|
Current
|
<15mA(single LED)
|
|
|
Best viewing distance
|
2M～10M
|
|
|
Best viewing angle
|
140°(W) 120°(H)
|
|
|
Power
|
Grey scale/colors
|
|
|
65536gray level/16.7M colors
|
||
|
MTBF
|
>9000hours
|
|
|
Power switch
|
Automatic switch
|
|
|
Main technical parameter
|
Driving device
|
Constant drive IC
|
|
Refresh frequency
|
>1920HZ
|
|
|
Temperature
|
storage:-35℃～+85℃
|
|
|
working:-20℃～+50℃
|
||
|
MTBF
|
>1000hours
|
|
|
Power switch
|
Automatic switch
|
