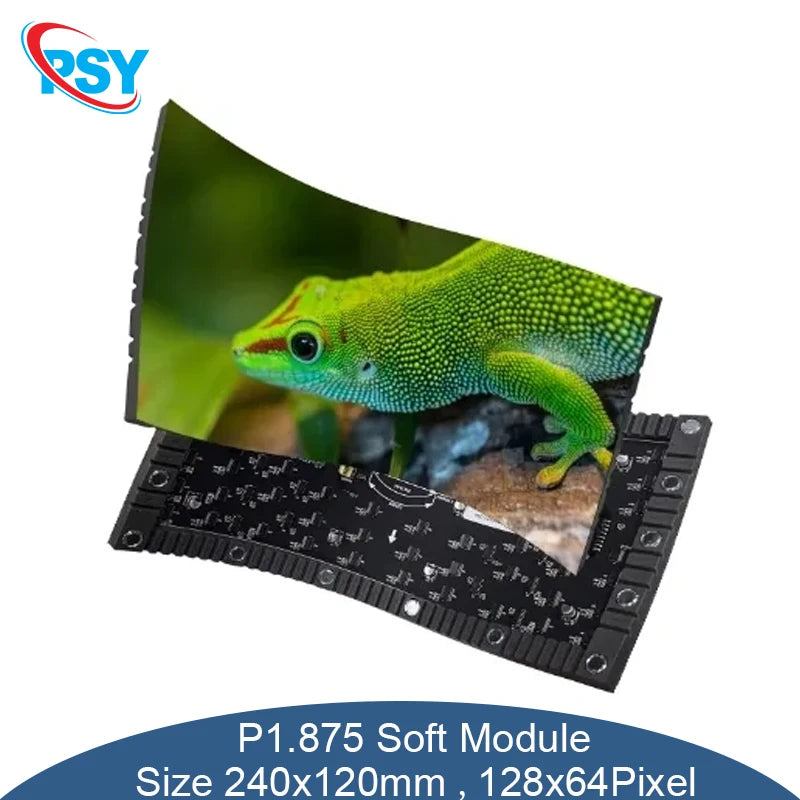

P1.875 LED Soft Full Color Module 240x120mm SMD Lamp 128x64 Pixels HUB75 Interface 32Scan 3840hz RGB Flexible Bendable Display
P1.875 LED Soft Full Color Module 240x120mm SMD Lamp 128x64 Pixels HUB75 Interface 32Scan 3840hz RGB Flexible Bendable Display
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NoEnName_Null
Brightness: 800CD/square meter
Display Function: VIDEO
Features: Matrix LED module
Hign-concerned Chemical: None
LED type: SMD1415
Life span: 100 thousand hours
Model Number: P1.875 flexible full color module
Module size: 240x120mm
Origin: Mainland China
Pixel: 1.875mm
Refresh rate: 3840HZ
Resolution: 128x64 DOTS
Scan mode: 1/26scan
Specification: Video wall
Tube Chip Color: Full Color
Use: Indoor
Voltage: 5V
is_customized: Yes
Technical Specifications:
Pixel Information |
Pixel Pitch |
1.875mm |
Pixel Density |
160000dots/m2 |
|
Pixel Configuration |
SMD1515 |
|
LED Wavelength |
Red:615 nm - 635 nm |
|
Green:520 nm - 535 nm | ||
Blue:465 nm - 475 nm | ||
LED Module |
Size(mm) |
240(Width) * 120(Height) |
Resolution |
128 (Width) * 64(Height) |
|
Power |
Input Voltage |
100-240V AC, 50/60Hz |
Max Power Consumption |
800 Watt/sqm |
|
Avg. Power Consumption |
350 Watt/sqm |
|
Brightness |
5000cd/m2 |
|
Brightness Uniformity |
Luminance Discrepancy < 5% |
|
Best Viewing Angle |
Horizontal:140°, Vertical:140° |
|
Ambient Conditions |
Temperature Range |
Working:-20deg. to +65deg |
Operating Humidity |
10%-90%RH |
|
Ingression Protection Grade |
IP40 |
|
Processing |
Scanning Mode |
1/32scan |
Refresh Rate |
>2460Hz, Adjustable(depends on control system) |
|
Signal Input |
DVI, Composite Video for Live Video |
|
Supported Networking |
Through LAN/WAN, RS 232/RS485 |
|
Controller |
Linsn or Nova |
|
